Quick Details

  • Condition: New
  • Type: Band Heater, PET heater for bottle warmer
  • Power Source: Electric
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Thin PET film heater pad
  • Model Number: Thin PET film heater pad
  • Dimension(L*W*H): Customize
  • Weight: Customize
  • Voltage: Customize, 1.5 to 400V (AC or DC)
  • Power(W): Customize
  • Certification: CE,ISO,CE,ISO,UL
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Material: polyester,PET,Mylar
  • Thickness: 0.15-0.5mm
  • Transparency: transparent
  • Hardness: Soft,Flexible
  • Working life:: 10khr at 100°C
  • Operating temperature range: -100 to 120oC (-212 to 248oF)
  • Services: OEM,ODM

Packaging & Delivery

Packaging Details PET Heating Film can customed as different drawing Packing:
PE Bag and standard carton
Delivery Time Within 7 Working Days

Product Name:   PET Heating Film can customed as different drawing

Description

Polyester heater uses pet polymer as insulated layer. This material offers many design features

such as excellent dielectric strength in very thin cross sections. PET heaters can be

customized to any size,shape and wattages as your requirements.



PET electric heating film

 The PET electric heating film is a low-temperature metal electric heating film which takes a PET polyester film as an insulating layer; and the PET polyester film has excellent insulating strength, can be bent (for example, the film can be wound outside a drum-shaped object to be heated), and has excellent dielectric strength and rather high thermal conversion efficiency which is usually 95 percent or so.



Technical Parameters
Insulating MaterialPET Polyester Film
Common Thickness0.1~0.6mm
Maximum Service Temperature100°C (below 80°C for a long time)
Minimum Temperature-36°C
Maximum Power Density7.8W/cm2
Voltage Range1.5-220V

Main characteristics
A: The PET electric heating film is a flexible heating element and can be bent.
B: It is energy-saving and power-saving. The temperature that a general heating material reaches at 10W can be reached by the metal electric heating film at 7-8W, and the energy is saved by about 30 percent.
C: The metal electric heating element has long service life which is more than 5 times that of the traditional electric heating wire heating element.
D: The product has no open fire and is safe and reliable. A low-voltage electric heating appliance produced by using the pet electric heating film can be used next to the skin, is safe and reliable, and cannot cause electric shock hazard.
 Main application
A: Medical care and beauty industries of electric heating waistbands, electric heating knee pads, electric heating insoles, electric heating gloves, electric heating mouse pads, electric heating clothes, pet clothes, baby bottle warmers and so on
B: The defrosting of automotive rearview mirrors and bathroom mirrors
C: Low-temperature heating elements such as thermal insulation bags, fish tank heaters and so on.
It can be simply and conveniently installed. The heating element can be pasted by a double faced adhesive tape and can also be fixed on a heated body by a mechanical method.
All PET electric heating products can be customized according to requirements of customers on voltage, size, shape and power.

Customize 3.7v 5v 7.4v 9v 12v 24v 36v 48v 60v  110v 115v 120v 220v 230v 240v 380v 400v transparent PET heater with CE RoHS certification,and we usually say it is PET heater.
PET heater is a transparent,lighter and flexibler heater.The heating element is etching foil.
So this heating fast and thermal conversion efficiency high.So PET heaters are widely used
 on industry,agriculture,medical and household electrical.
NOTE: we can custom according to your voltage, size, power and so on.
Some features are follow.

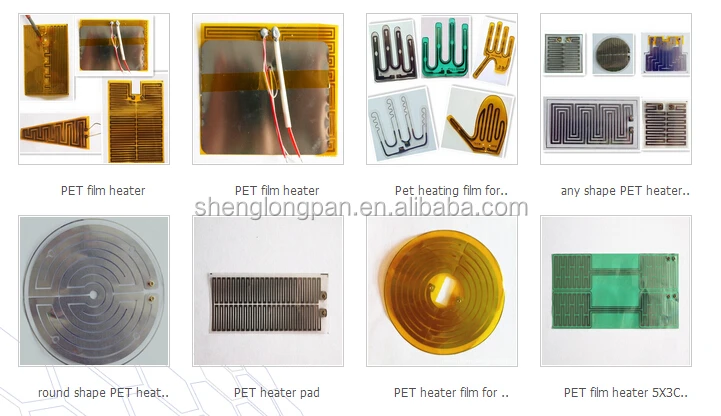

PET Film Heater
The surface heating equally with high thermal efficiency and save energy.Long servece-life.

PET Film Heater Features
1.The surface heating equally with high thermal efficiency and save energy.
2.Long servece-life,compare with traditional heating wire,it's 10 times servece-life.
3.It's on the safe side without brighting fire.
4.With good flexible performance,suitable for the flexible working condition
5.It can stand the strong causticity
6.high percision of circuit system
7.It has small inertia of heating and  control the temperature exactly within ±2%.
8.It's simple to install and connect.
metal heating film inclu the low temperature heating film(≤100 C) and high temperature heating film(≤300 C).our company can make variaty heating film as your request without limited both voltage and temperature.
Application description
Flexible heater, which is laminated between insulating layers such as polyimide, nomex, polyester, is a kind of thin, flexible etched foil heating element
1. Instruments temperature control: Gyro-accelerating detector, tail-wing operating device, aero-FCotograFCic apparatus
2. Electric appliance: Electric cooker, refrigerator defrosting, accumulator, electric blanket, greenhouse, wardrobe, coffee pot, crystal-electric cooker, bathroom-mirror defogging, invariable temperature tank, electronic-thermos, compressor, heater, thermos boxer plate, computer humidity-proofing, textiles and cloth dyer, foot warmer, water bed heater
3. Medical instruments: Disinfection, keeping blood, injections and drips
4. Test and research: Crystal ovens, mechanically-heated structures, IC testers and flasks
5. Agriculture and animal husbandry: Seedling breeder, raising chicken and pigs, breeding fish, incubators, electric blankets for stock and poultry
6. Transportation: Car mirror and signal defogging, water tank heating
7. Others: Electronic copier, food fermentation, food warming box, circuit heating, water bed heating system and more.

More Information of polyester

Polyester allows heated elements to have superior heat transfer and exceptionally uniform heat output, which results in a faster warm-up cycle and longer life. Also known as Mylar heater, this can be used to cover large areas with even heat on flat or gently curved surfaces. Polyester can be used with an etched foil or with one of our popular printed polymers.

Etched foil polyester heaters can be designed and fabricated in many types of configurations to fit the size and shape required in your application.

One of our printed polymers is a constant wattage circuit based on low resistance printed silver as the current distributor. The heat is generated by a number of parallel-connected polymer resistors and is therefore very robust and insensitive to small damages. The resistance is virtually constant up 100°C. The constant wattage polymer heaters or mylar heaters are mostly used in low power applications at moderate to high voltage, and can be less costly than metal foil to get the same low power required. The resistance in the polymer can be adjusted in the range from 50 ohm/sq to 50 000 ohm/sq and is therefore suitable for many different applications.

The other printed polymer functions as a PTC circuit also based on low resistance printed silver as a current distributor. The heat is generated by a number of parallel connected polymer resistors with PTC characteristics (Positive Temperature Coefficient). In most cases the polymer resistor is covering the polyester heater completely and hence gives a very even temperature distribution. The PTC effect makes the heater self-limiting and hence hot and cold spots are avoided as the power is generated were you need it.

The printed polymer heaters are also more corrosion resistance than metal heaters.

Etched foil Heater benefits

- Low wattage
- Distributed wattage
- Edge loss compensation
- Very small sizes of heaters can be precisely
   manufactured
- Economical mass production
- Accurate reproduction of complex circuits

Typical applications of the mylar heater
- Bathroom mirror heater
- De-icing equipment
- Rear view mirror
- Hand grip heater
- Cabinet heater

Constant Wattage Printed Polymer Heater benefits

- Possible to use on many different substrates
- Robust design insensitive to small damages
- Corrosion resistant
- Large span of resistivity

Typical applications
- Floor heating
- IR targets
- Waterbed heaters
- High Voltage, small area applications

Datasheet

PTC Printed Polymer Heater benefits

- Self regulation
- Robust design insensitive to small damages
- Corrosion resistant
- Cost effective at low power and high voltage

Typical applications
- Rear view mirrors
- Floor heating
- Waterbed heaters
- Low temperature applications, de-icing



Comparison between differet heater

Subject

Electrical Heating

Film

Air-conditioning

TraditionalHeater

Heating boiler

Warming way

Far-infrared

radiation

Hot wind

Electronic

 warming

Waterpipe

radiation

Degree of comfort

Very comfortable

Not good, noisy

Dry, noisy

Very comfortable

Time of warming

1-2 mins

10 mins

25 mins

60 mins

Quality of air

Fresh, allow

 to open

windows

Dry, do not allow

 to open

windows

Flesh, allow to

 open windows

Flesh, allow to

open windows

Cost

Low

OK

High

High

Maintenance

Do not need to

maintenance

Need to repair,

and need to

 fill feron every

two years

Need to repair

Need to change

water every year,

and wash pipe

every three years

Leaky

No

Yes

No

Yes

Process of warming

No stive

Some sitve

No stive

No stive

Sanitation

Will not multiply

bacilli

Easy to

multiply bacilli

Will not multiply

bacilli

Will not

 multiply bacilli

Energy cost

(10hours / 30 degree)

Low

High

High

Low

How To Order
Catalog Heaters

Chose from the tables of common sizes of polyimide in round or rectangular shapes.
The heaters listed are 5 W/in2. Standard configuration includes 10" Teflon leads, exit style A or L (see page 9-7) and no mounting option.

Custom Engineered/Manufactured Heaters

Understanding that an electric heater can be very application specific, for sizes and ratings not listed, Fullchance will design and manufacture a Flexible Surface Heater to meet your requirements.
Standard Lead time is 7 to 9 days

Please Specify the following:

  • Diameter
  • Wattage and Voltage
  • Lead Type
  • Sensors or Thermostats
  • Special Features or Cutouts
  • Lead Location



More Charactristics of Our Products

1.Small occupied space; light weight; the thickness of thin (less than 0.12mm).
2.Extremely soft, the minimum bending radius of only about 0.8mm.
3.The shape and size of flexible, especially suitable for making tiny flexible electric components.
4.Using the planar heating way, allowing the surface power density greatly. Therefore, this product series has uniform heating performance better, faster heating rate.
5.In the different area of the site can meet the requirements of different heating power and heating temperature requirements, according to the design requirements, to achieve the heating surface temperature distribution.
6.Thermal inertia of small, high precision of temperature control, speed.
7.As the insulating film protection layer with low saturated vapor pressure, low gas release, and has excellent chemical resistance, radiation resistance and antibacterial properties. Therefore, the product is suitable for thin-film heater vacuum environment, oil and most chemicals (eg, acid, chemical solvents, generally lye) contact with the environment.
8.Can be easily integrated into the thin insulation materials, providing light electric heating component with a heat insulation layer.
9.Good radiation resistance. Polyimide film 5 × 109rad dose radiation, the intensity remains 86%; certain polyimide fiber by 1 × 1010rad fast electron radiation, its strength retention rate of 90%.
10.It is self-extinguishing polymer, fuming rate.
11.A little gas in high vacuum.
12.Resistant to extremely low temperature, such as liquid helium at -60 °C will not rattle.
13.A good chemical stability and resistance to hot and humid. Polyimide materials generally insoluble in organic solvents, corrosion resistance, resistance to hydrolysis..Change the molecular structure of the design can be of different varieties. Some varieties amenable to 2, 120 °C under atmospheric pressure, 500h boiled.
14.Non-toxic, used to make cutlery and medical equipment, and withstand thousands of disinfection. Some electric film also has good biocompatibility, for example, blood compatibility test in a non-hemolytic, non-toxic in vitro cytotoxicity assays.
15.This series of product safety, reliability and long service life.

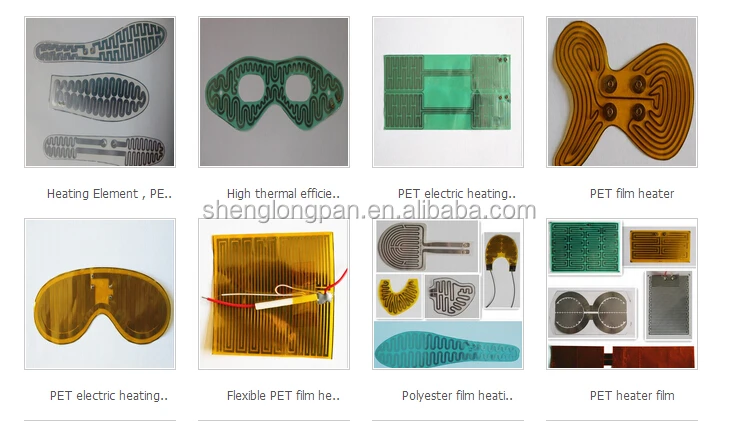

More Products We are anufacturing

Insulation Material Comparison

Heater Properties Insulation Material
MaterialPET        KAPTON         MICA    SILICON
Max. Thickness0.2-0.3mm0.2-0.3mm0.8-1.3mm0.5-0.9mm
Max Wattage Densities(W/cm2)2.57.8517
Voltage Range3-380V3-380V3-380Va3-380V
Dielectric Strength1000VRMS1000VRMS1000VRMS1000VRMS

Temperature Range

-32 to 130°C -150 to 200°C-150 to 600°C-45 to 230°C
-25 to 266°F-328 to 392°F-238 to 1112°F  -50 to 450°F

WHO WE ARE

Our policy is to achieve customers' satisfaction both by providing them with high level product quality and services that meet or exceed their expectation. Our aim is to ensure that our clients continue to put their faith in us for many years to come.



ABOUT US

OUR THINKING

We truly believe in long term relationship with our clients and our motto is customer satisfaction. We always believe in supplying best quality products at most reasonable price.



OUR GOALS

High Quality - We put every effort to provide products for our customers with highest standards of value, quality, service and integrity.Employee Safety - Employees are valuable assets of any good company. Therefore our endeavour is to provide a safe and healthy work environment for our employees.

Environmental protection - We care for environment and our facility work in an environmental friendly manner.On Time Delivery - We deliver when we promise!

Frequently asked questions

(1). Q: Can you give me a discount price?

A: It is depending on the volume. The larger the volume is, the more discount you can enjoy.

(2). Q: Why is your price a bit higher than other Chinese suppliers?

 A: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer’s target price and quality requirement.
(3). Q: How can I get a sample?

A: Normally small samples can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. For bigger sizes, it depends.

(4). Q: How can you guarantee the quality of mass production is same with the sample sent to me before?

A: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.

(5). Q: How can you deal with quality issues that customer feedback after receiving the goods?

1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.

2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.

3) Finally, we will negotiate with our customers to make some compensation.
