Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Polyimdie Tape for High Temperature Masking of Metal Material
  • Model Number: Polyimdie Tape for High Temperature Masking of Metal Material
  • Type: Insulation Tape, Polyimdie Tape for High Temperature Masking of Metal Material
  • Material: polyimide
  • Application: High Temperature, PCB,FPC,nsulation,high heat, coil wrapping
  • Rated Voltage: 5 KV
  • Tensile Strength: Excellent
  • Color: Brown
  • Feature: Heat-Resistant
  • Length: 33m
  • Using Temperature: -20 to 260 degree
  • Thickness: 50/55/60/80/100/120 Micron
  • Backing: Polyimide Film
  • Adhesive: Acrylic,silicone
  • Insulation grade: H

Packaging & Delivery

Packaging Details Polyimdie Tape for High Temperature Masking of Metal Material Packing:
Standard export packages,PP bag or PP shrinking roll
Delivery Time Within 7 Working Days

Product Name:Polyimdie Tape for High Temperature Masking of Metal Material

Description
Polyimdie Tape for High Temperature Masking of Metal Material,is also known as the imitation of kapton tape,

is with polyimide film as the basic carrier, and coated with imported pressure sensitive silicone adhesive.

It can endure high temperature up to 260°C within half an hour, and it also features like: electrical insulation, radiation resistance, solvement resistance etc. It’s mostly applied for

the motor insulation, gold finger protection of PCB during wave soldering etc.

Without any residue after the tape is removed from the gold finger.

Features

1.High and low temperature resistant

2.Acid and alkali resistant

3.Solvent resistant

4.H grade electric insulation

5.No residue would left after application.

6.No release film type or release film type are both available.

 Specifications

NO.

Adhesive

PI Film

Thickness
mm

Total

Thickness
mm

Length
m

Adhesive

Property
N/25mm

Tensile

Strength
N/25mm

Elongation
%

Breakdown

Voltage

kv

9101AS

Silicone

0.025

0.06

33

6.5

115

55

7.0

9101F

Silicone

0.025

0.08

33

6.0

105

52

5.5

9101F

Silicone

0.05

0.10

33

6.0

105

52

5.5

9101

Silicone

0.025

0.09

33

6.0

105

52

5.5

9101

Silicone

0.02

0.04

33

6.0

105

52

5.5

9101

Silicone

0.02

0.04

33

6.0

105

55

5.5

9101

Silicone

0.02

0.05

33

6.5

115

55

7.0

9101A

Silicone

0.025

0.06

33

6.5

115

55

7.0

9101

Silicone

0.025

0.06

33

6.5

115

55

7.0

9101

Silicone

0.05

0.08

33

6.3

185

60

9.0

9101

Silicone

0.075

0.12

33

6.3

185

60

9.0

9101

Silicone

0.125

0.17

33

6.3

460

70

13

9101

Silicone

0.025

0.06

33

6.5

115

55

7.0

9101

Silicone

0.05

0.08

33

6.3

185

60

9.0

9101F

Silicone

0.125

0.17

33

6.3

460

70

13

9102

Silicone

0.025

0.06

33

6.5

115

55

6.5

9102Acrylic

0.06

0.08

33

6.5

115

55

65

9102Acrylic

0.06

0.08

33

6.5

115

55

65

Applications
 1.High temperature protection of gold finger of the PCB under wave soldering.
 2.The coil insulation binding of the transformers.
 3.The fixation of Li batteries
 4.The fixation of heaters.
 5.The high temperature masking of electrical parts under high temperature

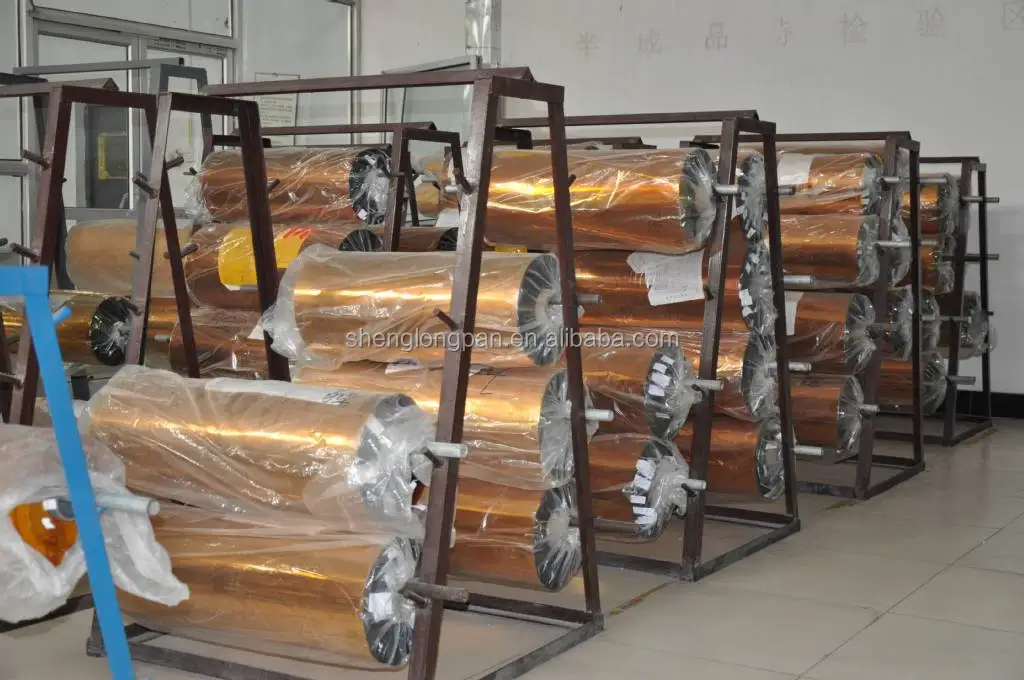

Process for producing Polyimdie Tape for High Temperature Masking of Metal Material

Process:

Resin synthetise—-filter—cast—-imidization—rolling—inspection—-slitting—package

1 Resin synthetise

Synthetise PAA with 3 raw materials of PMDA ODA and DMAC after chemical reaction.

2 Filter
Bubble clearing in bubble clearing pan after filter. Second time filter after bubble is cleared.

3 casting
Resin is casted on the belt through mould. Slicked resin is circled in hot wind in order to solvent evaporation and some imidization. The preliminary dry film (PAA film)  is conveyed to the front peel roll of casting machine and peeled off.

4 Imidization
Imidization process is heat imidization. Film peeled off from cast machine is imidized in imidization oven in high temperature. PAA film is transfromed into PI . In imidization, film is strengthed in CD, then the film is rolled.

5 Dry film temperature and  machine speed.



FRQ

How Customer Using Polyimdie Tape for High Temperature Masking of Metal Material ?

I used it with my new ’hot air’ rework station for SMT electronics.
Kept me from crisping parts that I was not working on.

How Customer Using Polyimdie Tape for High Temperature Masking of Metal Material ?

I used the tape as insulation over the motor, it was easy to use and the tape stuck well.

How Customer Using Polyimide Film Tape

I do a lot of work on laptops, computers, and various other electronics. If you need to tape down cables inside a computer, than you simply need this tape.

How Customer Using Polyimdie Tape for High Temperature Masking of Metal Material ?

Using it for a 3D printer and it is thin

How Customer Using Polyimide Film Tape

I bought this tape for my 3d printer and it’s pretty good. It does smell pretty bad when it gets hot which didn’t happen with my old polyimide tape so I’m sort of suspicious about the quality.

How Customer Using Polyimdie Tape for High Temperature Masking of Metal Material ?

I’m using this on top of my heated plate for a 3D printer. ABS sticks to it very well with a bed temperature of 70C.

How Customer Using Polyimdie Tape for High Temperature Masking of Metal Material ?

It is heat resistant, and will never degrade, so you never have to worry about sticky residue on your circuit boards. The tape is strong, yet peels off easily, making for the perfect tape in electronics. There is no substitute for polyimide tape, and if you  like me and do a lot of electronics work, than this tape is a ‘must-have’.

How Customer Using Polyimdie Tape for High Temperature Masking of Metal Material ?

This tape is awesome. One of the reasons I got it was to cover the glass on my print-bed to print on with my 3D printer. I have had the same layer of tape on it for months and it works great.

How Customer Using Polyimdie Tape for High Temperature Masking of Metal Material ?

This stuff does work. If you need a durable, high temperature tape, this is it.

Just what I need for repairing on our 3D printer. Holding wires, patching splits in the print surface.

How Customer Using Polyimdie Tape for High Temperature Masking of Metal Material ?

I have been looking for a small yet durable tape to use on my project where I am soldering 60+ surface mount components. This roll of tape has been a life saver when it comes to holding down parts safely, and allowing me to properly solder in all of the connections. There is more than enough tape on the roll to get through any project, and the size is perfect when dealing with 32 pin chips. Holds up to heat quite well (iron temp at 300*F), sticks strong, peels off easy. If you are working on a project like me with a lot of surface mount parts, order a bunch of these rolls, they are invaluable!
